Self-Locking Aluminum Cable Trunking | Snap Fit & High Strength

Type of Aluminium Profile or Aluminium plate Cable Trunking

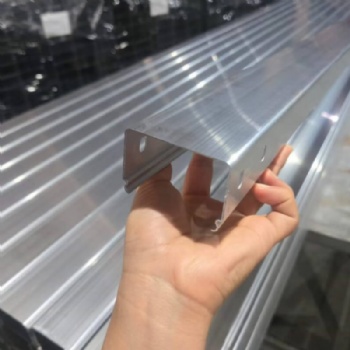

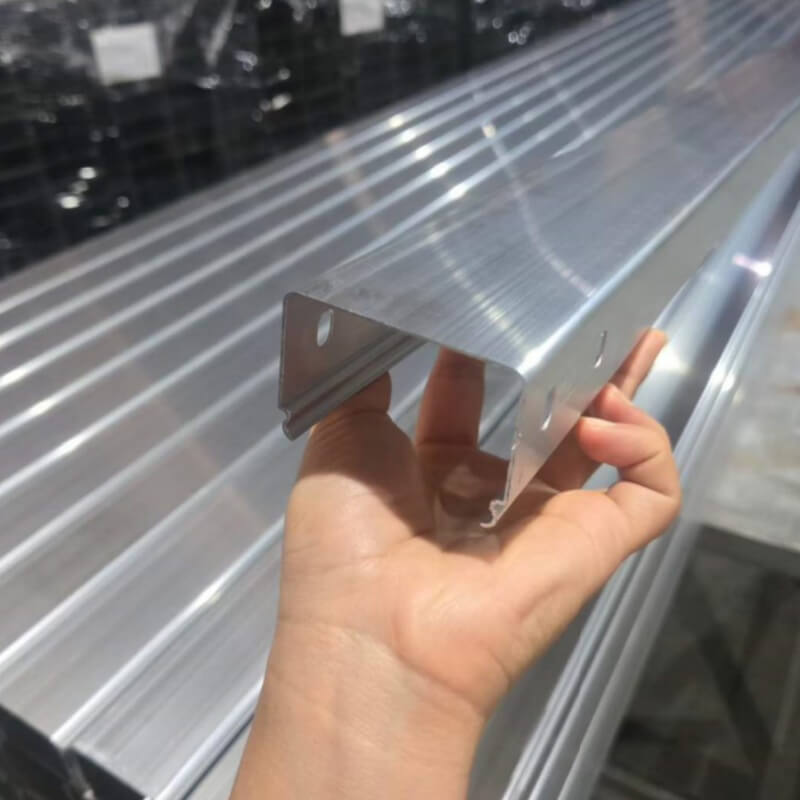

The self-locking buckle structure of our aluminum alloy trunking enables direct press-fit assembly without extra screws or fixing accessories. Field installers can splice and lay the cable ducts rapidly, greatly shortening construction periods and lowering manual installation costs. The tight snap connection keeps the trunking tightly joined even after long-term use, preventing loosening or separation caused by vibration and external collision.

Constructed from high-quality aluminum alloy raw material, this cable trunking achieves a perfect balance between lightweight body and excellent mechanical strength. Compared with plastic troughs, aluminum material delivers stronger compression and bending resistance, resisting warping, extrusion deformation and cracking under conventional load conditions. The metal body also boasts stable physical properties and will not age or soften amid normal indoor and outdoor working environments.

Apart from convenient assembly and reliable structural stability, the aluminum wire casing brings reliable protection for internal wires against extrusion damage and external friction. Widely applicable to factory wiring, workshop circuit arrangement, building interior wiring and equipment cable sorting scenarios. Integrated practical advantages of easy installation, solid texture and long service life make it a cost-effective solution for centralized cable management.

Advantage of Self-Locking Aluminium plate cable duct

• Tool-free pressing assembly, efficient wiring layout

• Light aluminum material, high compressive strength

• Anti-deformation & anti-loosening, stable long-term operation

• Comprehensive wire protection for multiple engineering occasions

Material & Finish available

·Aluminium Plate:1060;

·Aluminium Profile:6063;

Drawing for Aluminium Cable Trunking

Customizable Service: Can be customized according to customer's size, load capacity and surface treatment requirements to meet different project needs.

Bending Components And Brackets for Aluminum Cable Trunking

We produce and supply all kinds of bending components, bracket and other cable tray accessories

Schematic Diagram Of Aluminium Cable Trunking Space Layout

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
